Baxi Maxflow Combi FS

Baxi Maxflow Combi FS Parts

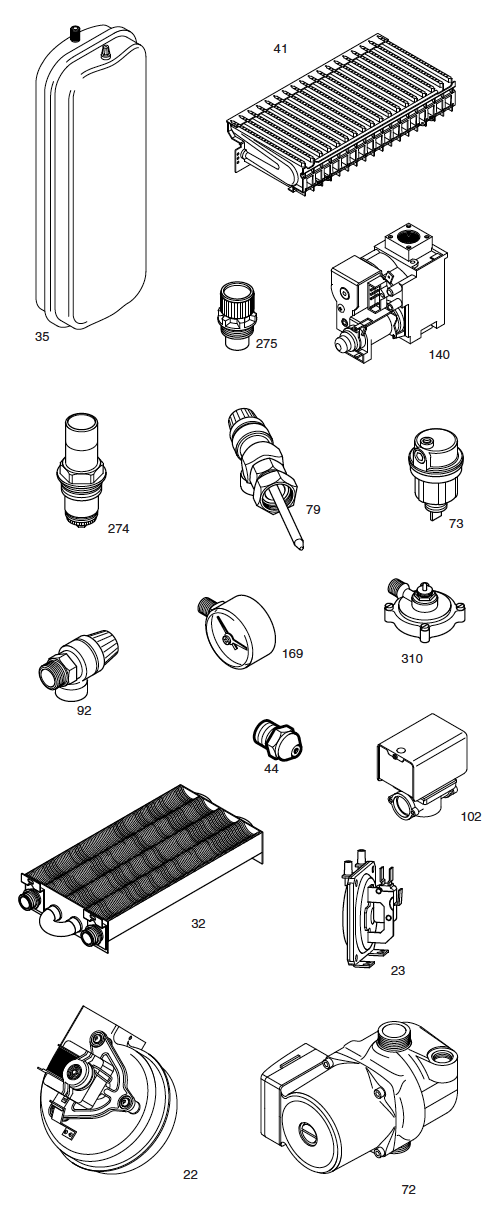

Maxi Maxflow Combi FS Part 1

Baxi Maxflow Combi FS Part 2

IDPart NoPart DescriptionNotesPurchase
23248630Pressure Switch
22247381 / 378-864Fan
41248636Burner
310247388 / E03-572Pressure Differential Switch
72247738 / 379-799Pump
73248461Automatic Air Vent
140247392 / E59-897Gas Valve
102248653Diverter Valve (3 Port Valve)
169248670Pressure Gauge
92248650Safety Valve 3bar
274247403 / E59-948Cartridge Pressure Reducing Valve
275247404 / E60-000Cartridge Expansion Relief Valve
79247405 / E59-881Storage Temp/Pressure Relief Valve
32248633Heat Exchanger
35248634Expansion Vessel
44247439 / E03-569Burner Injector 1.18mm NG
65247382 / E59-875Electrode Ignition/Sensing
59247385 / E03-582Electrode Lead Ignition
314248710Electrode Lead Sensing
342247453 / E60-098Microswitch Loom
135248656Limit Thermostat (O/Heat)
131248655Temperature Sensor
172247397 / 379-764Suppresor
154248672Main PCB
155248673Ignition PCB
156247400Neon PCB
171247401Relay PCB
315248711Storage Cylinder Sensor
