Baxi Barcelona System

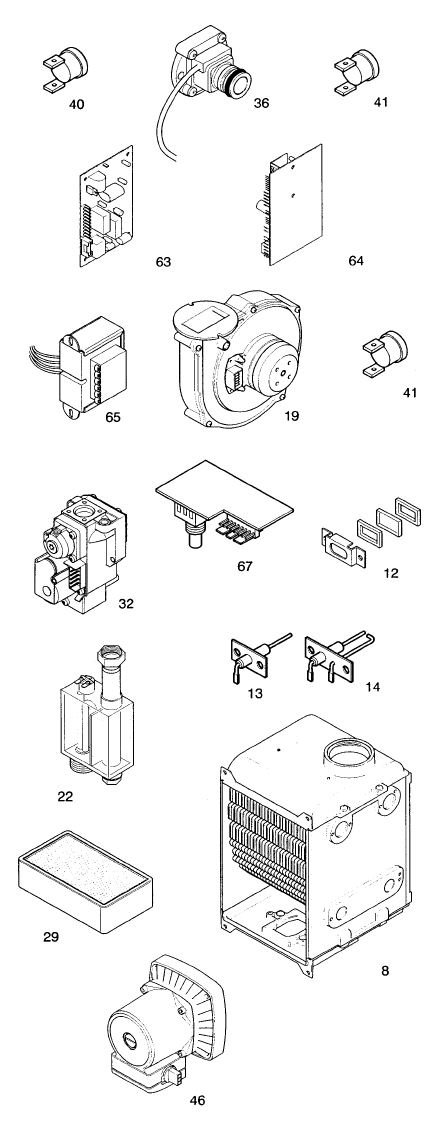

Baxi Barcelona System Parts
| ID | Part Number | Part Description | Notes | Purchase |
|---|---|---|---|---|
| 40 | 242458 / E06 058 | Flow TemperatureThermistor (Red) | ||
| 36 | 242459 / E06 059 | Flow Switch | ||
| 41 | 242460 / E06 060 | Safety Thermostat (Black) | ||
| 64 | 242463 / E06 064 | Control PCB | ||
| 63 | 242464 / E06 065 | Ignition PCB | ||
| 65 | 242465 / E06 066 | Transformer | ||
| 19 | 242472 / E06 074 | Fan | ||
| 32 | 242473 / E06 075 | Gas Valve | ||
| 67 | 242477 / E06 079 | Interface PCB | ||
| 12 | 242484 / E06 085 | Viewing Window | ||
| 22 | 242485 / E06 086 | Condensate Trap | ||
| 13 | 244736 / E24 460 | Electrode Burner | ||
| 14 | 244737 / E24 461 | Sensing Electrode | ||
| 41 | 242460 / E06 060 | Thermostat | ||
| 29 | 242492 / E06 093 | Burner Assy | ||
| 8 | 242497 / E06 097 | Heat Exchanger Assy | ||
| 46 | 241157 / E02 762 | Pump |
