Baxi System 60/100
Baxi System 60/100 Parts

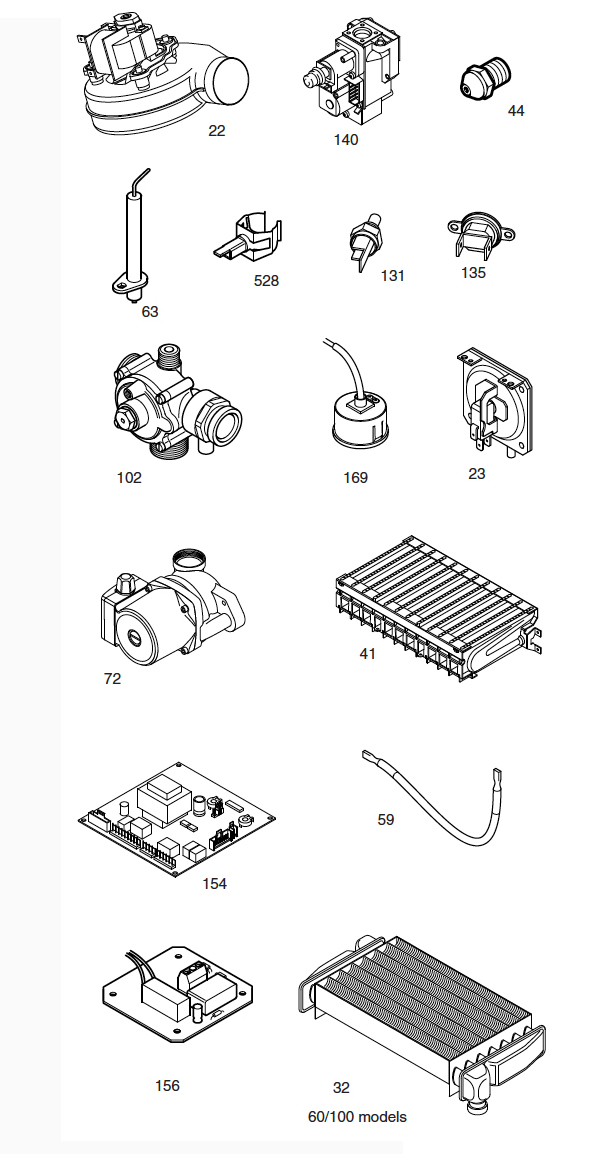

| ID | Part Number | Part Description | Notes | Purchase |
|---|---|---|---|---|
| 22b | 248002 / E66 527 | Fan 60/100 | ||
| 23 | 247380 / 393 374 | Pressure Switch | ||
| 32b | 248017 / E66 535 | Heat Exchanger 60/100 | ||
| 41b | 248030 / E66 399 | Burner 60/100 | ||
| 44 | 248210 | Injector | ||
| 59 | 248037 / E66 408 | Electrode Lead | ||
| 63 | 247384 / E66 411 | Spark or Sensing Electrode | ||
| 72b | 248042 / E66 539 | Pump 60/100 | ||
| 102 | 248490 | Hydraulic Outlet Assy | ||
| 131 | 247394 / 342 571 | Temperature Sensor | ||
| 135 | 248079 / E66 439 | Safety Thermostat | ||
| 140 | 5107339 | Gas Valve | ||
| 154 | 248074 | PCB | ||
| 156 | 248620 | DHW Relay PCB | ||
| 169 | 248090 / E66 453 | Pressure Gauge | ||
| 528 | 248497 | Return Heating Temperature Sensor |
